Alupanel Smart

Based on Alupanel but made using thinner 0.26mm aluminium skins, it has the ability to be fabricated, folded and formed - combining durability with flexibility.

Why use Alupanel Smart?

  • Uniform, flat surface
  • UV Resistant for outdoor use
  • Versatile and easily formable
  • Lightweight yet rigid
  • Clean, easy-peel film
  • 3 year warranty
EXPANDCOLLAPSE
AdhesiveCo-extruded to give superior adhesionCoreHigh quality PE coreAluminium skin0.26mm high grade aluminium offering excellent processing characteristics for easier cutting/bending, etc.PaintHigh quality Ultrawhite PE paint finish in matt/matt or with one side in high gloss and the reverse in a matt.Protective FilmDesigned to protect the panel during storage, transit and installation
Grid

Full Details

Available in a range of thicknesses, Alupanel Smart is supplied as a dual-sided sheet with one side high-gloss and the reverse in a matt finish. Particularly suited to high wear environments, this robust aluminium composite sheet is a premium quality product.

For further information, you can access the product brochures and technical documents below.

VIEW BROCHURES
Grid

Applications

Alupanel Smart is suitable for a huge range of applications in a variety of industries including those where fabrication is required. Applications include:

  • Sign Making
  • Wayfinding
  • 3D Lettering
  • Standoff Lettering
  • Lightweight Hanging Signs
  • POS Displays
  • Vinyl Application
  • Modular Sign Systems
  • Shop/External Fascias
  • Corporate ID
  • Exhibition Design
  • Outdoor Advertising
  • Interior Panels & Decoration
  • Direct UV & Screen Printing
Aluminium composite panels used for signs

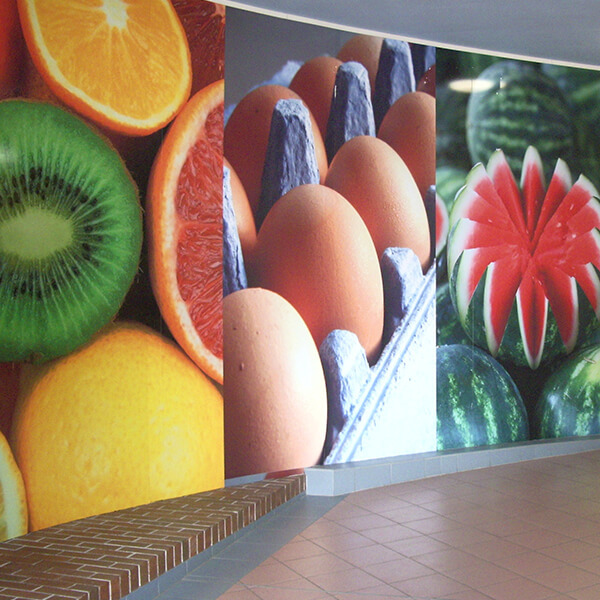

Composite panels used for displays

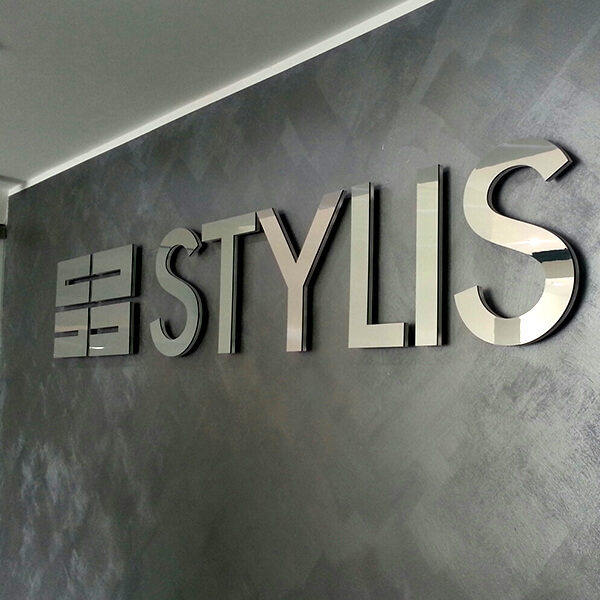

Sign Display 15

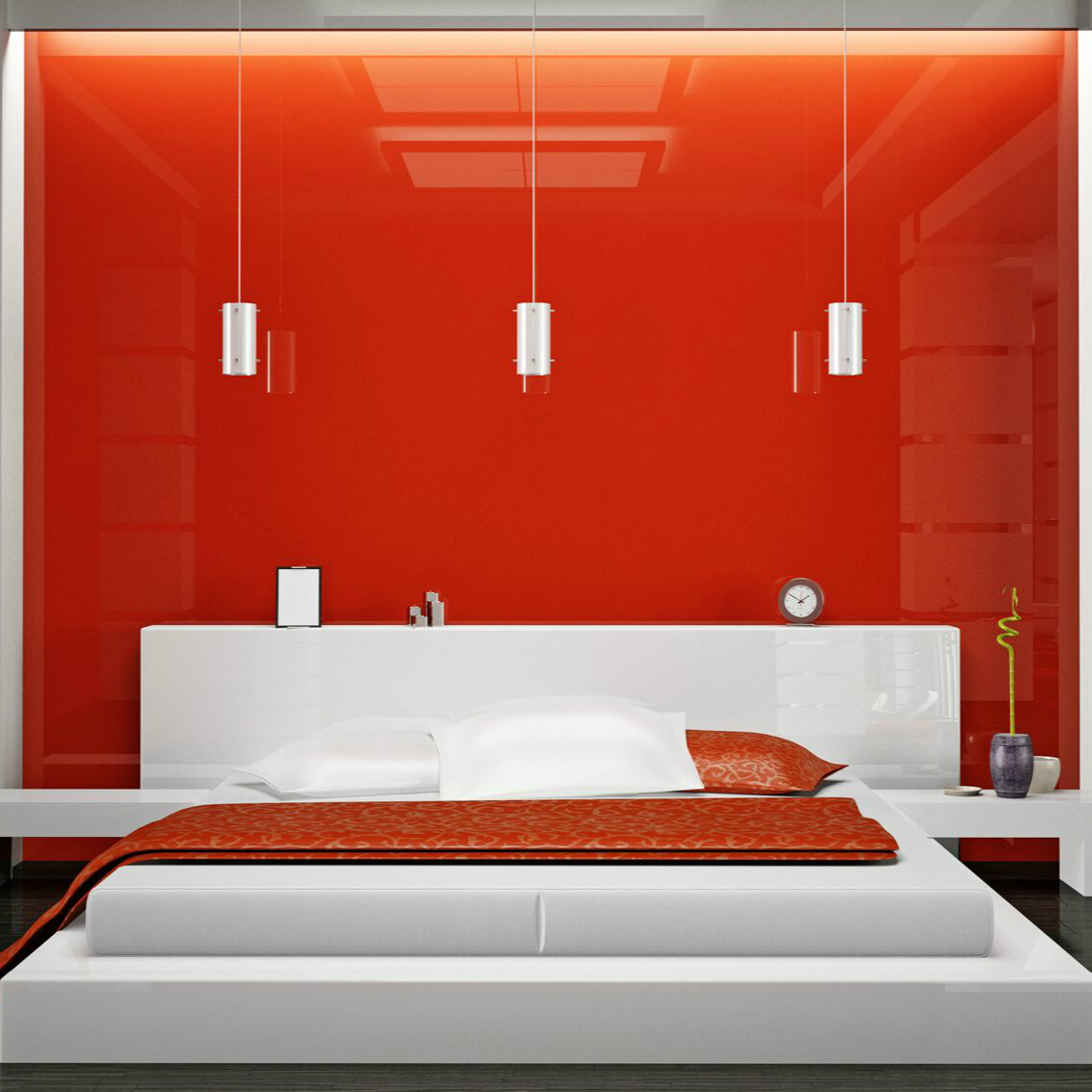

Square Orange Gloss Interior Wall With Bed

Technical

Here are the sheet sizes and thicknesses available as standard along with the technical specification of Alupanel Smart.
Please note, some finishes are stocked in a limited selection of sizes, please contact us for specific details.

SIZES / THICKNESSPANEL PROPERTIESDIMENSIONAL TOLERANCESSURFACE PROPERTIES
Panel Thickness (mm)2346
Skin Thickness (mm)0.260.260.260.26
Weight (KG/m2)2.723.624.576.42
1000mmx2015mm
1000mmx2440mm
1000mmx2050mm
1000mmx3050mm
1220mmx2440mm
1220mmx3050mm
1250mmx2550mm
1250mmx3050mm
1500mmx3050mm
1500mmx4050mm
1525mmx3050mm
1560mmx3050mm
2000mmx3050mm
2000mmx4050mm
2050mmx3050mm
2050mmx4050mm
Panel Thickness (mm)2346
Sound Absorption0.050.050.050.05
Sound Attenuation23242526
Water Absorption % by Volume0.010.010.010.01
Thermal Performance R Values0.00470.00800.01130.0180
Core CompositionLDPELDPELDPELDPE
Fire Performance
Tensile Strength of Aluminium Layers149MPa149MPa149MPa149MPa
Panel Thickness (mm)+/- 0.2
Width (mm)-0 +2
Length (mm)-0 +3
Diagonal-0 +5
Thermal Expansion2.4mm/m @100ºC Temp Difference
Aluminium ThicknessAs specified in EN485-4
Paint Thickness (microns)20
Pencil Hardness2H
Toughness of Coating3T
Temperature Resistance-50ºC to +80ºC
Impact Strength (kg/CM2)50
Boiling Water ResistanceBoiling for 2hrs without change
Acid ResistanceSurface immersed in 2% HC1 for 24hrs without change
Alkali ResistanceSurface immersed in NaHO engine oil for 24hrs without change
Oil ResistanceSurface immersed in 20# engine oil for 24hrs without change
Solvent ResistanceCleaned 100 times with Dimethylbenzene without change
Cleaning Resistance>1000 times without change
Peel Strength>5 Newton/mm
